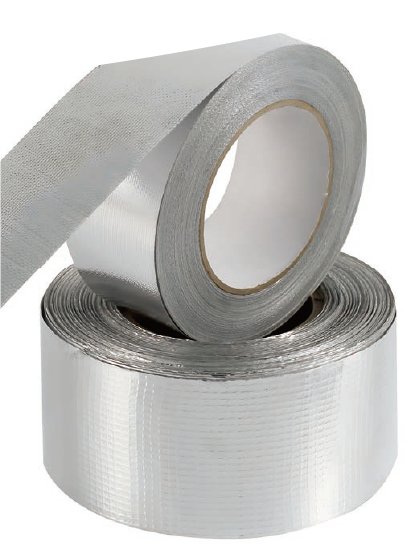

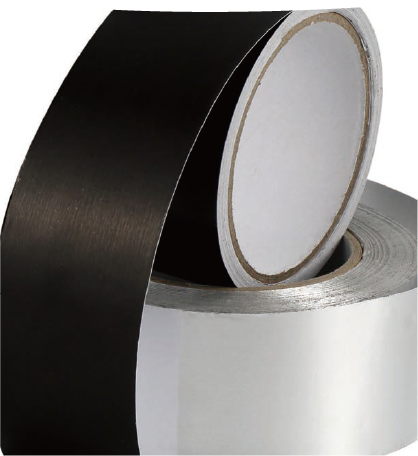

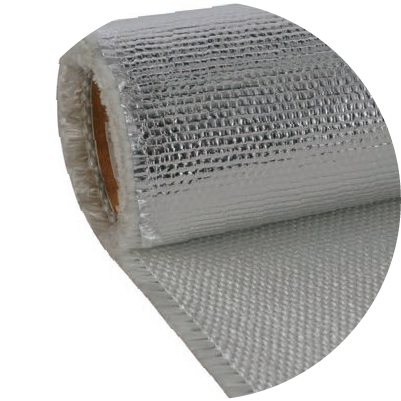

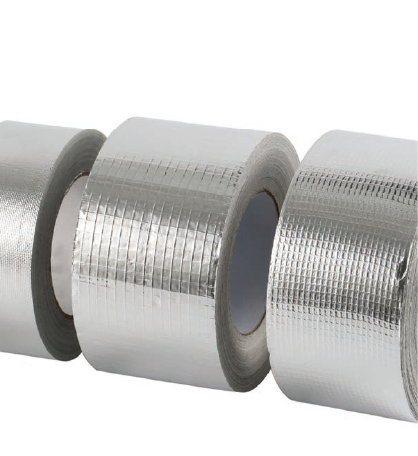

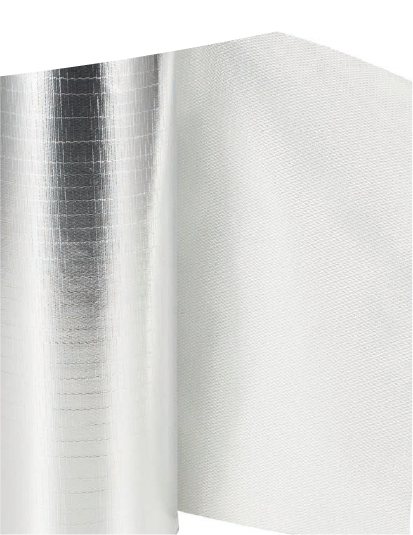

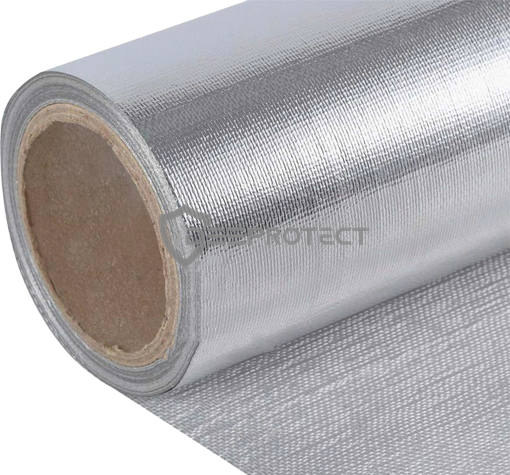

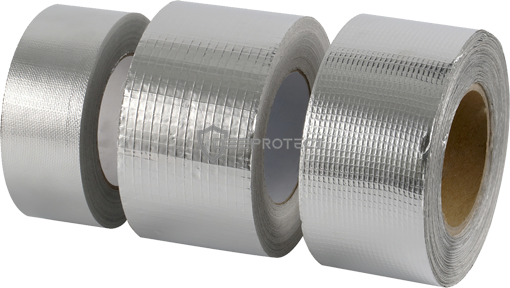

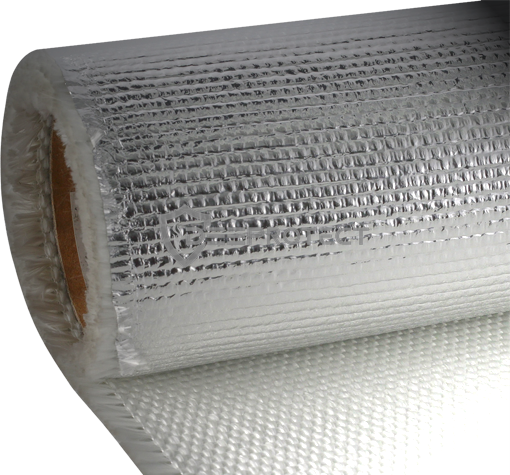

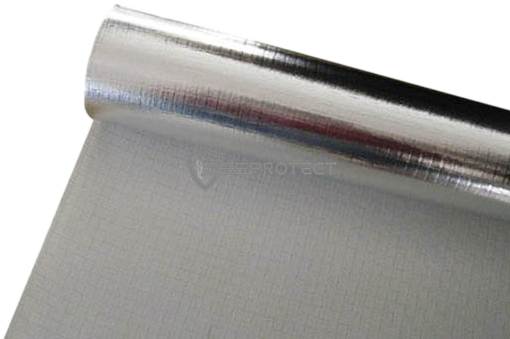

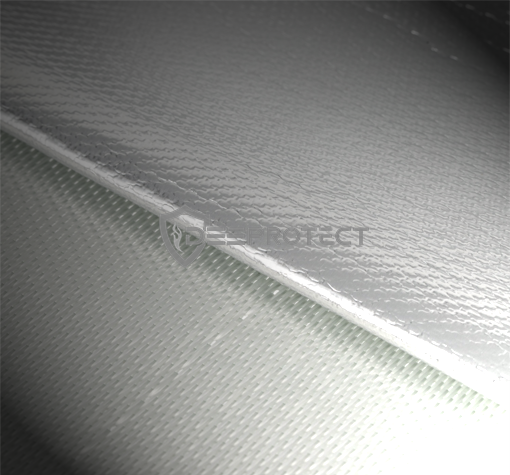

Aluminum foil fiberglass composite fabric is an advanced insulation material manufactured through a specialized composite process. It combines high-strength fiberglass fabric with a flame-retardant adhesive layer and an outer aluminum foil surface. This unique construction provides exceptional thermal insulation, moisture resistance, and durability, making it ideal for HVAC systems, industrial piping, and construction applications where thermal management and fire protection are critical.

Return to List

Product Features

Excellent Thermal Insulation: Reflects up to 97% of radiant heat
Flame Retardant: Meets stringent fire safety standards
Waterproof & Airtight: Superior moisture and vapor barrier properties
Chemical & Corrosion Resistant: Withstands harsh industrial environments
High Tensile Strength: Reinforced fiberglass structure prevents tearing
UV & Weather Resistant: Suitable for both indoor and outdoor use
Lightweight & Flexible: Easy to install on complex surfaces
Sound Absorption: Effective noise reduction properties

Sizes

Model and Specification

Parameter	Range
Thickness	0.1mm - 1.5mm
Width	1000mm - 1500mm (Standard)
Aluminum Foil Thickness	7μm - 14μm
Temperature Range	-50°C to 550°C
Roll Length	50m - 100m (Customizable)

Application

HVAC Systems: Duct insulation and piping protection
Industrial Piping: Oil, gas, and steam pipeline insulation
Construction: Protective layer for rock wool and glass wool insulation
Welding Protection: Heat shields and spark barriers
Equipment Wrapping: Moisture and corrosion protection

Remarks

Standard Packaging: Rolls wrapped in protective plastic film, packed in cartons
Bulk Packaging: Palletized with corner protectors
Special Packaging: Custom cutting available
Storage Conditions: Keep dry (≤65% humidity) at 10-35°C

Standard Complied

China Standards: GB/T 17748 (Aluminum-plastic composite), GB 8624 (Flame retardant)
International Standards:
- ASTM C1313 (Foil-faced insulation)
- EN 13501-1 (Fire classification)
- ISO 9001 (Quality management)
