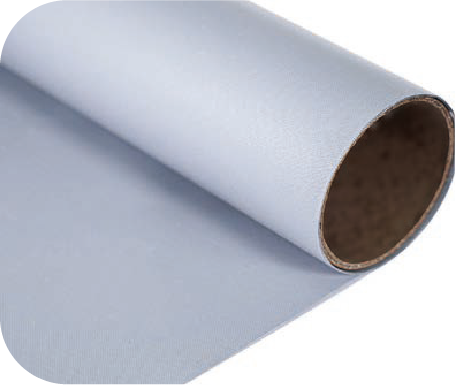

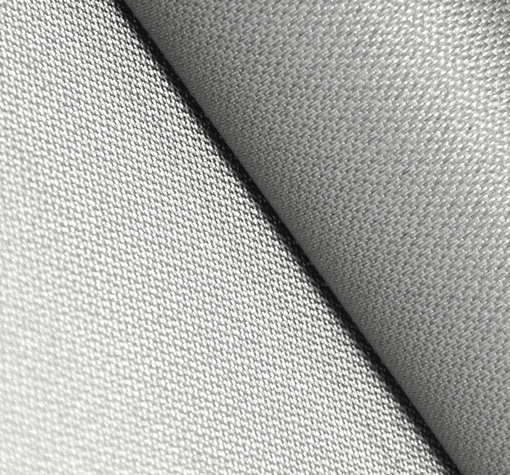

PU-coated fiberglass fabric is manufactured by applying a high-performance polyurethane solution to high-strength fiberglass substrate. This composite material combines the structural integrity of fiberglass with the exceptional protective properties of polyurethane, creating a versatile material suitable for demanding industrial and architectural applications.

Return to List

Product Features

Exceptional Wear Resistance - Withstands abrasion in high-traffic applications
Temperature Resistance - Performs in both extreme cold and moderate heat
Breathability - Allows moisture vapor transmission while being waterproof
UV & Aging Resistance - Long service life in outdoor environments
Fireproof Properties - Meets stringent fire safety standards
Waterproof - Impermeable to liquid water
Anti-Static - Reduces static electricity buildup
Flexibility - Maintains pliability across temperature ranges

Sizes

Model and Specification

Parameter	Standard Grade	Fireproof Grade	Architectural Grade	Industrial Grade
Base Fabric Weight (g/m²)	280-320	320-350	250-280	350-400
PU Coating Thickness (μm)	100-150	150-200	80-120	200-250
Total Thickness (mm)	0.35-0.45	0.45-0.55	0.30-0.40	0.50-0.65
Tensile Strength (N/cm)	≥800	≥900	≥700	≥1000
Service Temperature Range (°C)	-40 to +80	-40 to +120	-30 to +70	-50 to +100
Water Resistance (mmH₂O)	≥2000	≥2500	≥1500	≥3000
Fire Rating	B1	A2	B1	A1
Standard Width (mm)	1000, 1500, 2000 (custom widths available)

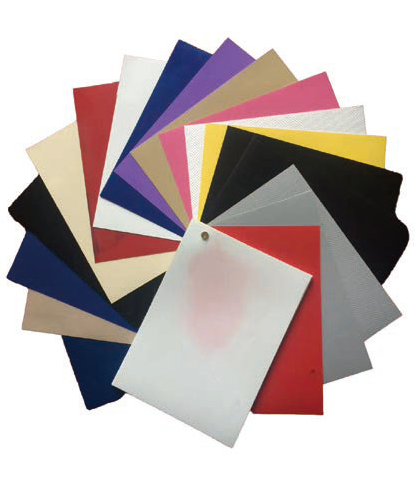

Standard Colors	White, Gray	Red, White	Custom colors	Black, Gray

Available Models

PUFG-300: Standard general-purpose grade
PUFG-350FR: Enhanced fireproof version
PUFG-260AR: Architectural grade with color options
PUFG-400HD: Heavy-duty industrial grade
PUFG-280AT: Anti-static treated version

Application

Thermal Insulation

Pipeline insulation wraps
HVAC system insulation
Industrial equipment insulation

Fire Protection

Smoke barriers in public spaces
Fireproof curtains and partitions
Emergency evacuation systems

Architectural Applications

Tensile membrane structures
Stadium and arena roofing
Atrium and skylight systems
Facade protection membranes

Industrial Uses

Protective covers for heavy equipment
Temporary shelters and enclosures
Conveyor belt systems
Chemical protection barriers

Remarks

Customization: Available with various surface treatments including anti-microbial, UV-stabilized, and custom color matching. Can be supplied with reinforcement edges or attachment systems.

Installation: Can be welded, sewn, or adhered using appropriate PU-compatible adhesives. Consult technical datasheet for specific installation guidelines.

Packaging: Standard rolls of 50 linear meters, wrapped in protective film. Custom packaging available for export requirements.

Standard Complied

1. Chinese National Standards:
- GB/T 532-2008: Test methods for coated fabrics.
- GB 8624-2012: Flammability Classification of Building Materials (Class B1).
- GB/T 20285-2006: Smoke toxicity test standard for materials.
- GB/T 5455-2014: Flammability test for textiles.
- GB/T 17658-2018: Test method for combustion heat of building materials.

2. International Standards:
- ASTM D751-2019: Standard Test Methods for Coated Fabrics.
- ASTM E84-2021: Surface Burning Characteristics (Class A).
- EN 13501-1:2019: Fire classification (Class B-s1,d0).
- ISO 1421:2016: Rubber- or plastics-coated fabrics - Determination of tensile strength.
- NFPA 701:2019: Fire Tests for Flame Propagation of Textiles.
- DIN 4102-1: German fire behavior standard (B1 classification).
- BS 476-7:1997: British standard for surface spread of flame.
