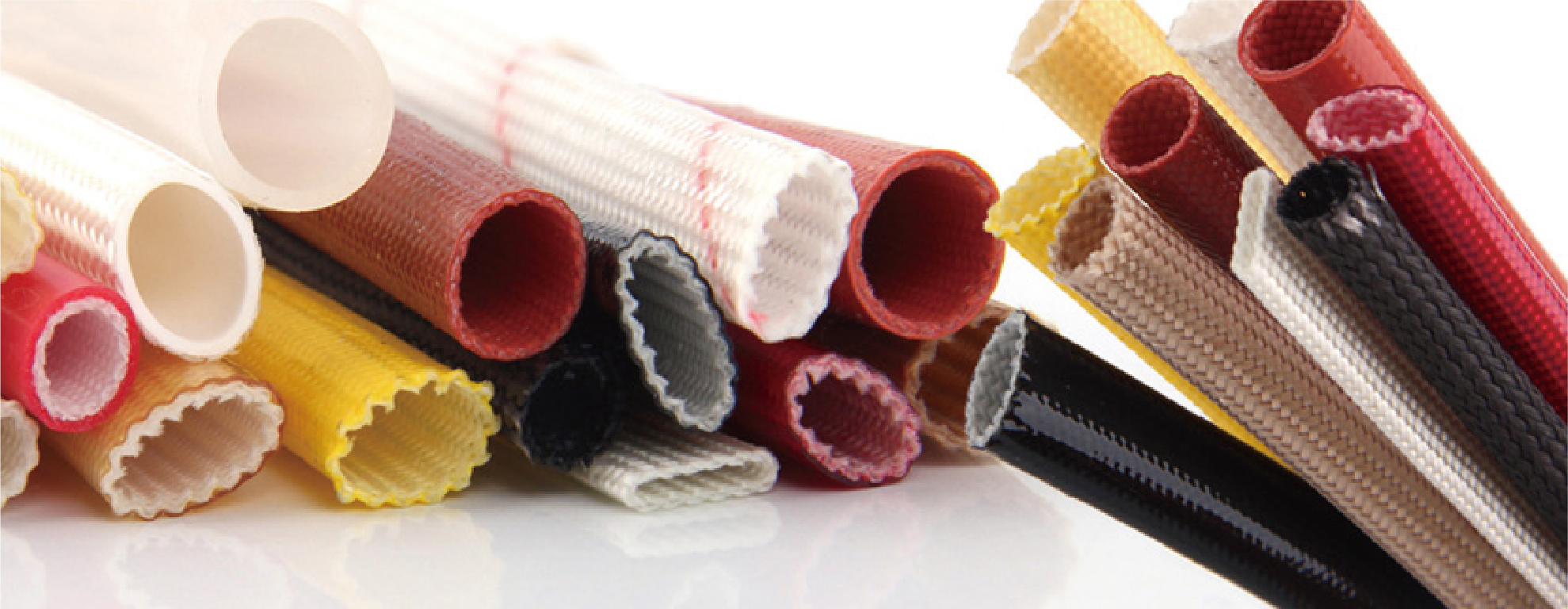

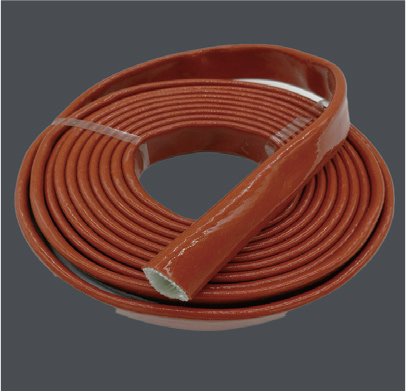

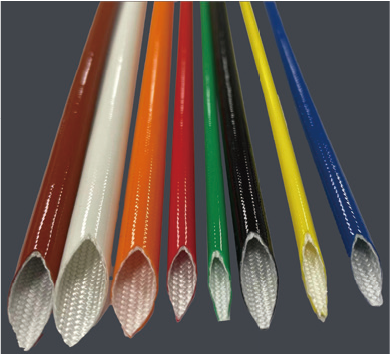

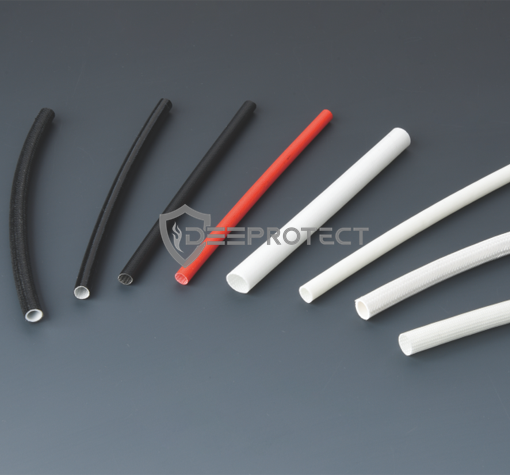

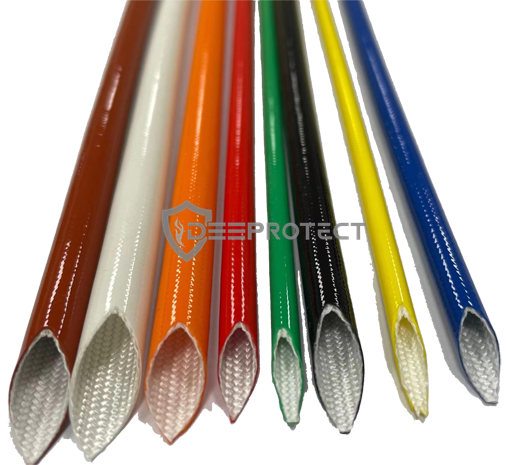

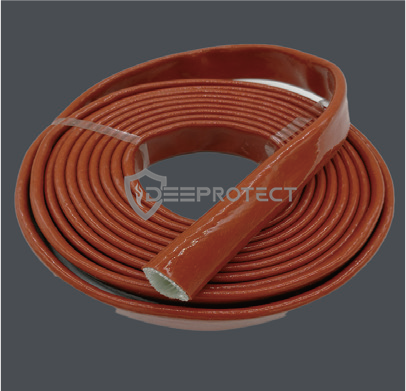

Silicone rubber coated fiberglass sleeve is manufactured by weaving fiberglass into a tubular structure and then coating it with high-temperature-resistant silicone rubber, followed by vulcanization. This process creates a durable, flexible sleeve with excellent flame retardancy, thermal insulation, electrical resistance, and corrosion resistance. It is widely used for protecting cables, hoses, and hydraulic fittings in extreme heat environments such as steel mills, foundries, glass factories, and firefighting equipment.

Return to List

Product Features

High-Temperature Resistance: Withstands continuous exposure to -60°C to +260°C (short-term up to 300°C).
Flame Retardant & Self-Extinguishing: Meets UL 94 V-0 standards.
Oil & Chemical Resistant: Resists oils, solvents, and corrosive substances.
Excellent Electrical Insulation: High dielectric strength for safe electrical applications.
Flexible & Durable: Maintains flexibility even at low temperatures.
Abrasion & Tear Resistant: Reinforced fiberglass structure ensures long service life.
UV & Weather Resistant: Suitable for both indoor and outdoor use.

Sizes

Model and Specification

Inner Diameter (mm)	Wall Thickness (mm)	Standard Length (m)
φ12–φ18 ±0.4	3.0 ±0.3	30
φ20–φ30 +0.8	3.5 ±0.4	20
φ35–φ55 +1.0	3.8 ±0.5	20
φ60–φ100 +1.0	4.0 ±0.5	20
φ105–φ120 +1.0	5.0 ±0.5	20

Custom sizes and lengths available upon request.

Application

Industrial High-Temperature Protection: Cables, hoses, and pipes in steel mills, foundries, and glass factories.
Automotive & Aerospace: Engine wiring, exhaust systems, and hydraulic lines.
Electrical & Electronics: Insulation for high-voltage cables and transformers.
Firefighting Equipment: Heat shielding for hoses and control systems.
Oil & Gas Industry: Protection for pipelines and drilling equipment.

Remarks

Standard Packaging: Coiled in plastic bags, packed in cartons or wooden cases.
Bulk Packaging: Palletized for large orders.
Storage Conditions: Keep in a dry, cool place (10°C–30°C), away from direct sunlight and chemicals.

Standard Complied

China: GB/T 20023 (Flame retardant standards), GB/T 531 (Rubber hardness test)
International: UL 94 V-0 (Flammability), ASTM D2671 (Abrasion resistance), RoHS compliant

This is a product showcase page. For pricing and purchasing, please contact our sales team.
