Liquid Silicone-Coated Fiberglass Fabric (LSR Fiberglass Fabric) is manufactured by applying liquid silicone rubber (LSR) onto fiberglass fabric through a precision coating process. This advanced material combines the superior flexibility of liquid silicone with the high strength of fiberglass reinforcement, making it ideal for demanding applications in extreme environments.

Return to List

Product Features

Premium silicone-coated fiberglass fabric with superior flexibility, heat resistance, and durability. Ideal for aerospace, marine, and high-end industrial applications.

Superior Mechanical Properties: High tensile strength, elasticity, and tear resistance.
Extreme Temperature Resistance: Stable from -50°C to +250°C.
Chemical & Weather Resistance: Resistant to acids, alkalis, UV, and ozone.
Aesthetic & Customizable: Smooth finish, ideal for high-end applications.

Sizes

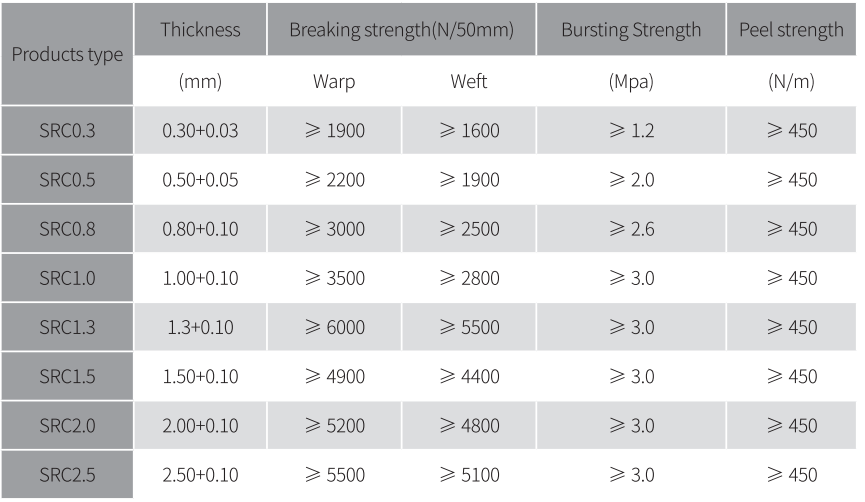

Model and Specification

Product Type	Thickness (mm)	Breaking Strength (N/50mm)	Bursting Strength (MPa)	Peel Strength (N/m)
SRC0.3	0.30 ± 0.03	≥1900 / ≥1600	≥1.2	≥450
SRC0.5	0.50 ± 0.05	≥2200 / ≥1900	≥2.0	≥450
SRC0.8	0.80 ± 0.10	≥3000 / ≥2500	≥2.6	≥450
SRC1.0	1.00 ± 0.10	≥3500 / ≥2800	≥3.0	≥450

Application

High-temperature insulation (gaskets, furnace linings)
Aerospace & marine (fireproof barriers, yacht interiors)
Electronics (flexible circuit substrates)
Stage & architectural decoration

Remarks

Customization available per GB/T 1.1-2020 requirements
MOQ: 500㎡ for GB standard products
Standard roll size: 1m × 50m (custom sizes available)
Storage: Keep dry, avoid direct sunlight

Packaging: Rolls (standard width: 1m / 1.2m, custom sizes available).

Standard Complied

Standards: GB/T 20671 (China), ASTM D751 (International), UL 94 V-0 (flame retardant).

TIPS: LSR vs. SR Fiberglass Fabric Comparison

Feature	LSR Fiberglass Fabric	SR Fiberglass Fabric
Material State	Liquid silicone (better adhesion)	Solid silicone (high-pressure molding)
Flexibility	More elastic at low temps	Slightly stiffer
Applications	High-end (marine, electronics)	Industrial (gaskets, insulation)

This is a product showcase page. For pricing and purchasing, please contact our sales team.
