Silicone Rubber Coated Fiberglass Fabric (also called silicone titanium cloth) is a flexible composite material combining high-strength fiberglass fabric with organosilicon polymer (PDMS). Unlike rigid Silicone Resin Coated Fiberglass Fabric, this elastic material excels in dynamic sealing and vibration absorption applications.

Return to List

Product Features

Temperature Range: -60°C to +250°C continuous service
High Elasticity: 150-300% elongation at break
Chemical Resistance: Resists oils, acids, and alkalis
Electrical Insulation: Volume resistivity ≥10¹³ Ω·cm
Flame Retardant: UL 94 HB / GB 8624 B1 class

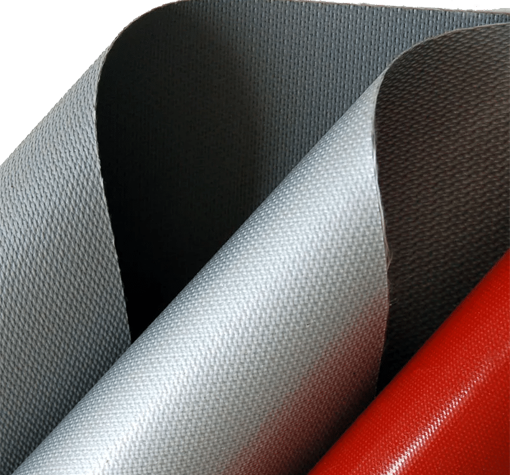

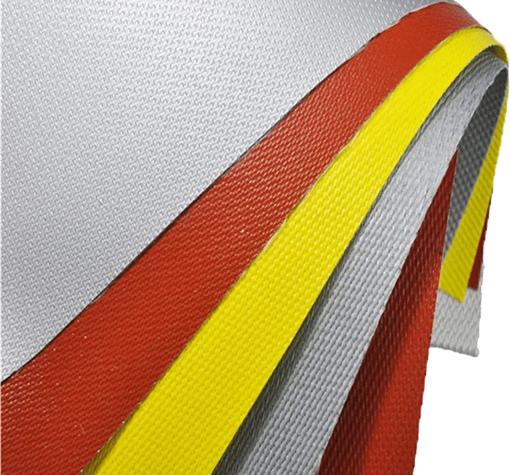

Custom Colors: Red, black, green, blue, silver-gray (Pantone matching available)

Important:
This is NOT Silicone Resin Coated Fabric (which is inorganic and rigid).
This product is elastic and complies with GB/T 20671-2006 for flexible coated fabrics.

Sizes

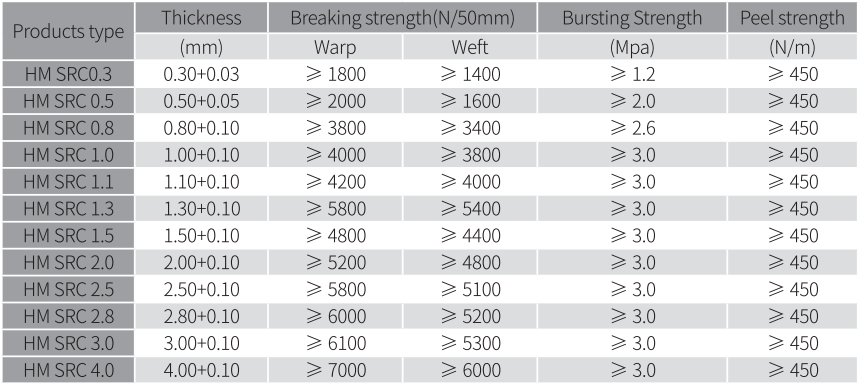

Model and Specification

Product Code	Thickness (mm)	Breaking Strength (N/50mm)	Bursting Strength (MPa)	Peel Strength (N/m)
HM SRC0.3	0.30±0.03	Warp: ≥1800 Weft: ≥1400	≥1.2	≥450
HM SRC0.5	0.50±0.05	Warp: ≥2000 Weft: ≥1600	≥2.0	≥450
HM SRC0.8	0.80±0.10	Warp: ≥3800 Weft: ≥3400	≥2.6	≥450
HM SRC1.0	1.00±0.10	Warp: ≥4000 Weft: ≥3800	≥3.0	≥450
HM SRC1.1	1.10±0.10	Warp: ≥4200 Weft: ≥4000	≥3.0	≥450
HM SRC1.3	1.30±0.10	Warp: ≥5800 Weft: ≥5400	≥3.0	≥450
HM SRC1.5	1.50±0.10	Warp: ≥4800 Weft: ≥4400	≥3.0	≥450
HM SRC2.0	2.00±0.10	Warp: ≥5200 Weft: ≥4800	≥3.0	≥450
HM SRC2.5	2.50±0.10	Warp: ≥5800 Weft: ≥5100	≥3.0	≥450
HM SRC2.8	2.80±0.10	Warp: ≥6000 Weft: ≥5200	≥3.0	≥450
HM SRC3.0	3.00±0.10	Warp: ≥6100 Weft: ≥5300	≥3.0	≥450
HM SRC4.0	4.00±0.10	Warp: ≥7000 Weft: ≥6000	≥3.0	≥450
