Fluoroelastomer Fiberglass Composite Fabric | High-Temp Chemical Resistant

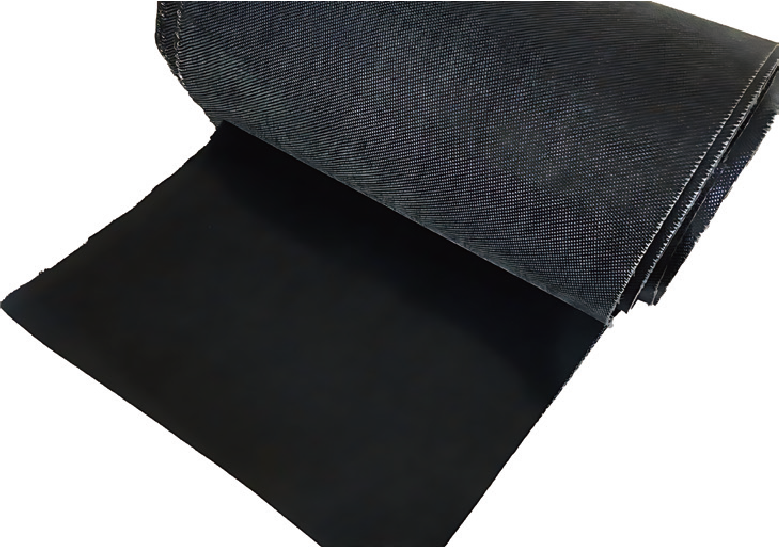

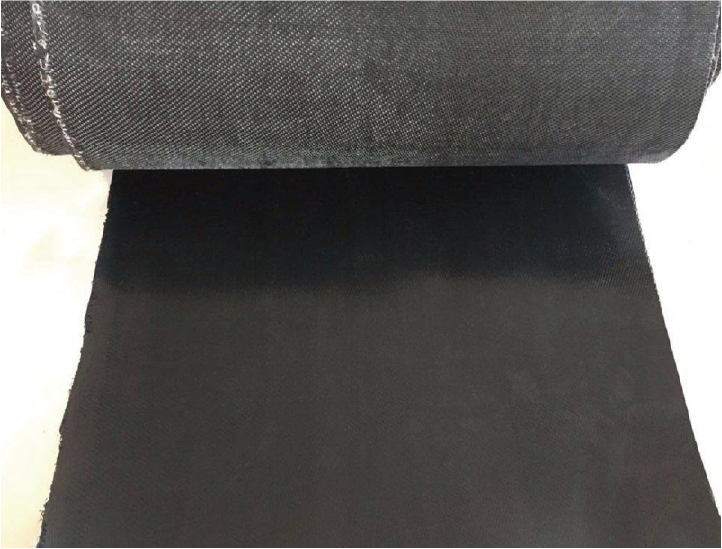

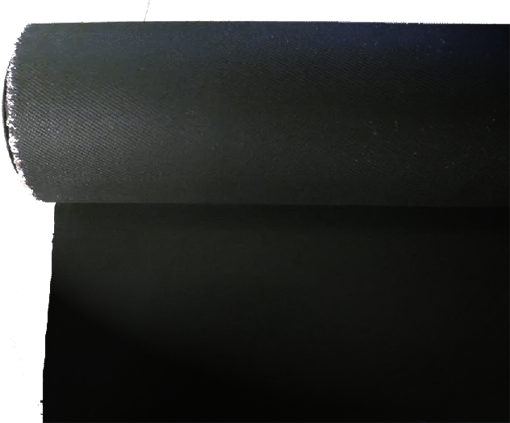

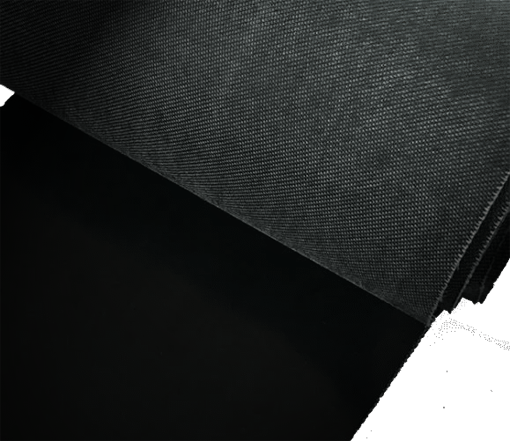

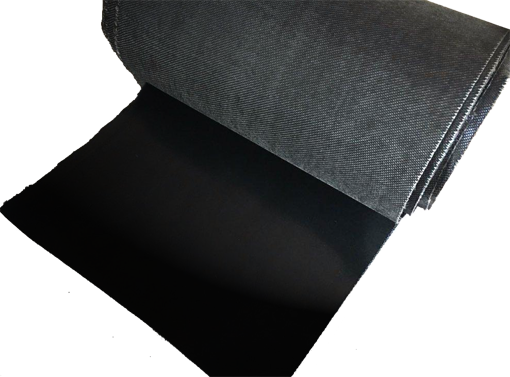

A high-performance composite material combining E-glass fiber fabric with fluoroelastomer (FKM) coating through a specialized calendering process. Engineered for the most demanding industrial applications requiring simultaneous heat, chemical and mechanical stress resistance.

Return to List

Product Features

Note: This material meets MIL-DTL-64154 specifications for extreme environment performance and ASTM D1418 for fluoroelastomer properties.

Thermal Performance:
- Continuous service: -40°C to +300°C
- Short-term peak: 320°C (≤2 hours)
- Low temperature flexibility: -55°C (ASTM D2137)
Chemical Resistance:
- Resistant to ASTM Fuel B, Skydrol 500B
- pH range: 1-14 (96h immersion test)
- Swelling resistance: ≤10% in oil (ASTM D471)
Mechanical Properties:
- Tensile strength: Up to 7000 N/50mm
- Elongation at break: 15-25%
- Tear resistance: ≥50 N/mm (ASTM D624)
Special Features:
- Zero halogen composition
- Flame retardant: UL 94 V-0
- Weathering resistance: 10,000+ hours QUV-B

Sizes

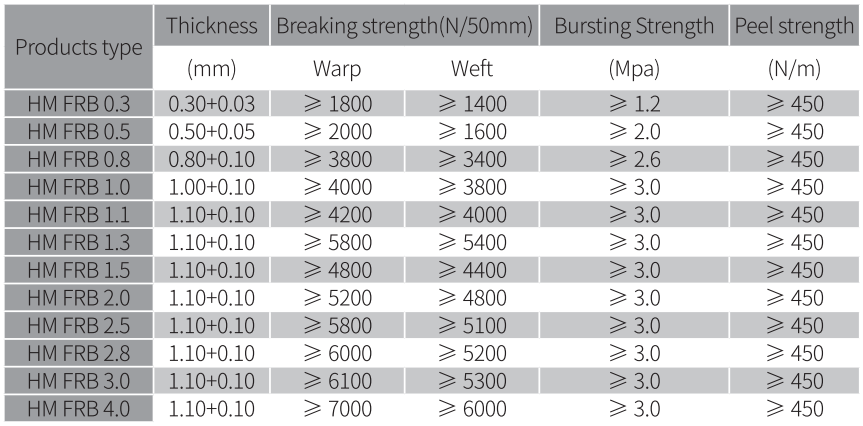

Model and Specification

Model	Thickness (mm)	Breaking Strength (N/50mm)	Burst Strength (MPa)	Peel Strength (N/m)	FKM Coating Weight (g/m²)
HM FRB0.3	0.30±0.03	≥1800 (Warp) ≥1400 (Weft)	≥1.2	≥450	120±10
HM FRB0.5	0.50±0.05	≥2000 ≥1600	≥2.0	≥450	200±15
HM FRB0.8	0.80±0.10	≥3800 ≥3400	≥2.6	≥450	320±20
HM FRB1.0	1.00±0.10	≥4000 ≥3800	≥3.0	≥450	400±25
HM FRB1.5	1.50±0.10	≥4800 ≥4400	≥3.0	≥450	600±30
HM FRB2.0	2.00±0.10	≥5200 ≥4800	≥3.0	≥450	800±40
HM FRB3.0	3.00±0.10	≥6100 ≥5300	≥3.0	≥450	1200±50

Application

Aerospace:
- Engine gaskets and seals
- Fuel system components
Energy Sector:
- Flue gas desulfurization systems
- Power plant expansion joints
Chemical Processing:
- Acid storage tank liners
- Chemical resistant diaphragms
Transportation:
- High-temp hose reinforcement
- Exhaust system components

Remarks

Standard Packaging:
- PE-lined moisture barrier bags
- Reinforced export cartons
Storage Conditions:
- Temperature: 10-30°C
- Humidity: ≤60% RH
- Shelf life: 5 years in original packaging
Safety:
- Use with adequate ventilation
- Wear nitrile gloves when handling

Standard Complied

Material Standards:
- ASTM D1418 (Fluoroelastomer classification)
- MIL-DTL-64154 (Military specification)
Performance Tests:
- ASTM D573 (Heat aging)
- ASTM D471 (Fluid resistance)
Safety Certifications:
- FDA 21 CFR 177.2600 (Food contact)
- EN 45545-2 (Railway fire safety)

This is a product showcase page. For pricing and purchasing, please contact our sales team.
