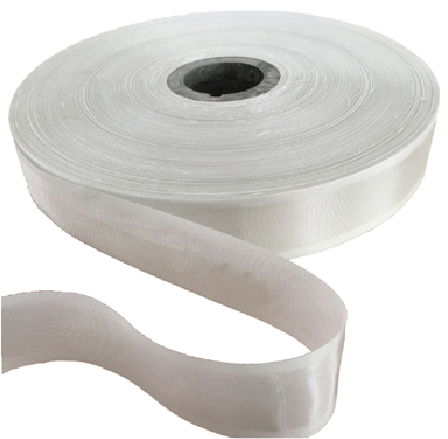

Fiberglass tape is a high-performance wrapping material manufactured from continuous filament fiberglass yarns. Designed for thermal and electrical insulation in demanding environments, it undergoes specialized weaving and coating processes to enhance durability and temperature resistance.

Return to List

Product Features

Temperature Resistance:
- Continuous use: -60°C to +550°C
- Short-term exposure: up to 700°C
Physical Properties:
- Tensile strength: ≥1000 N/cm (warp direction)
- Dielectric strength: ≥5 kV/mm
Chemical Resistance:
- pH stability: 2-12 (ASTM D543)
- Hydrolytic resistance: ≤1% weight loss (ISO 719)
Safety Compliance:
- Non-combustible (UL 94 V-0)
- Asbestos-free (RoHS/REACH compliant)

Sizes

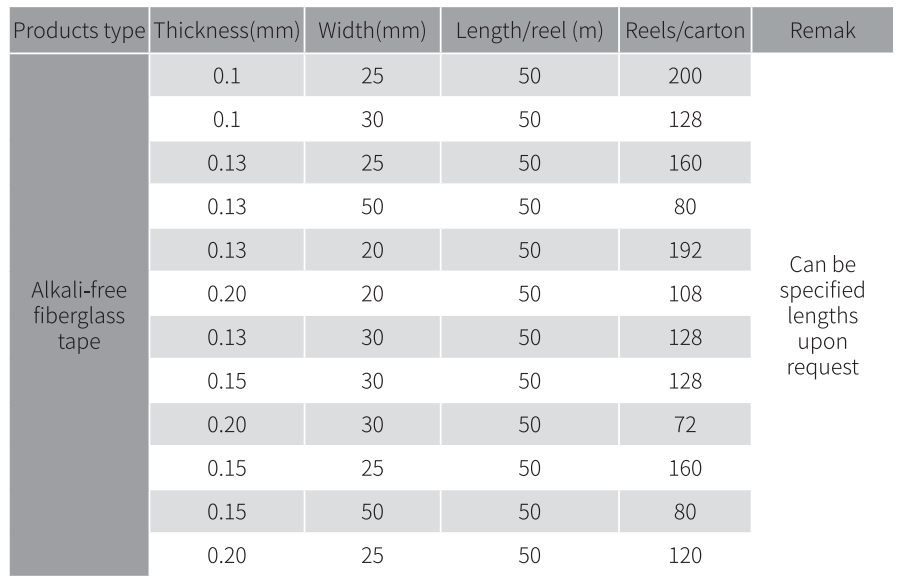

Model and Specification

Product Type	Thickness (mm)	Width (mm)	Length/Reel (m)	Reels/Carton
Fiberglass Tape	0.10	25	50	200
	0.10	30	50	128
	0.13	25	50	160
	0.13	50	50	80
	0.13	20	50	192
	0.20	20	50	108
	0.13	30	50	128
	0.15	30	50	128
	0.20	30	50	72
	0.15	25	50	160
	0.15	50	50	80

Application

Electrical Insulation:
- Cable bundling and harness wrapping
- Transformer coil insulation
Thermal Management:
- Heat trace cable securing
- Steam pipe insulation
Industrial Protection:
- Corrosion protection for marine fittings
- Exhaust system component wrapping

Remarks

Standard Packaging:
- Inner: Anti-static PE bag
- Outer: 5-ply export carton
Shelf Life: 24 months in original packaging
Storage Conditions:
- Temperature: -20°C to +40°C
- Humidity: ≤65% RH

Note: All specifications can be customized including thickness (0.08-0.25mm), width (10-100mm), and reel length (10-100m).

Standard Complied

Material Standards:
- GB/T 18370-2014 (E-glass fiber)
- ASTM D4029 (Woven glass fabrics)
Performance Standards:
- IEC 60371-1 (Electrical insulation)
- EN 13501-1 (Fire resistance)
Safety Standards:
- UL 510 (Insulation tape)
- RoHS Directive 2011/65/EU

This is a product showcase page. For pricing and purchasing, please contact our sales team.
