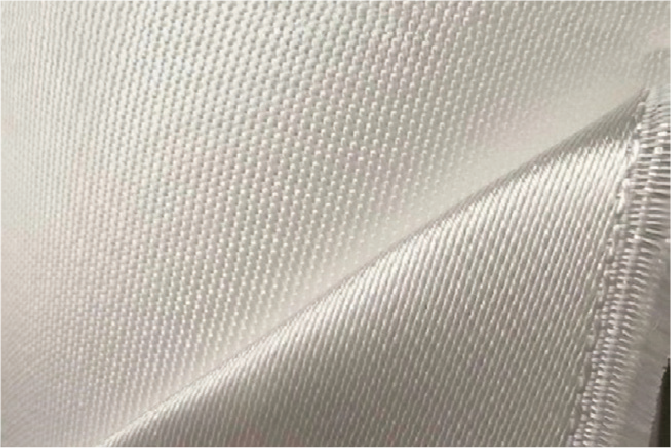

A high-performance woven fabric manufactured from continuous filament bulked fiberglass yarns in both warp and weft directions. Designed as an asbestos-free alternative, it combines superior thermal insulation with enhanced filtration capabilities for industrial applications.

Return to List

Product Features

Thermal Performance:
- Continuous service temperature: 550°C
- Instantaneous peak resistance: 650°C
Mechanical Properties:
- Tensile strength: 30-50% higher than standard fiberglass fabrics
- Abrasion resistance: 2x life expectancy (ASTM D3884)
Filtration Advantages:
- 40% larger dust capture surface area
- 25% lower airflow resistance vs conventional fabrics
Safety Compliance:
- Non-asbestos (ISO 22262-1 standard)
- ROHS/REACH standard

Sizes

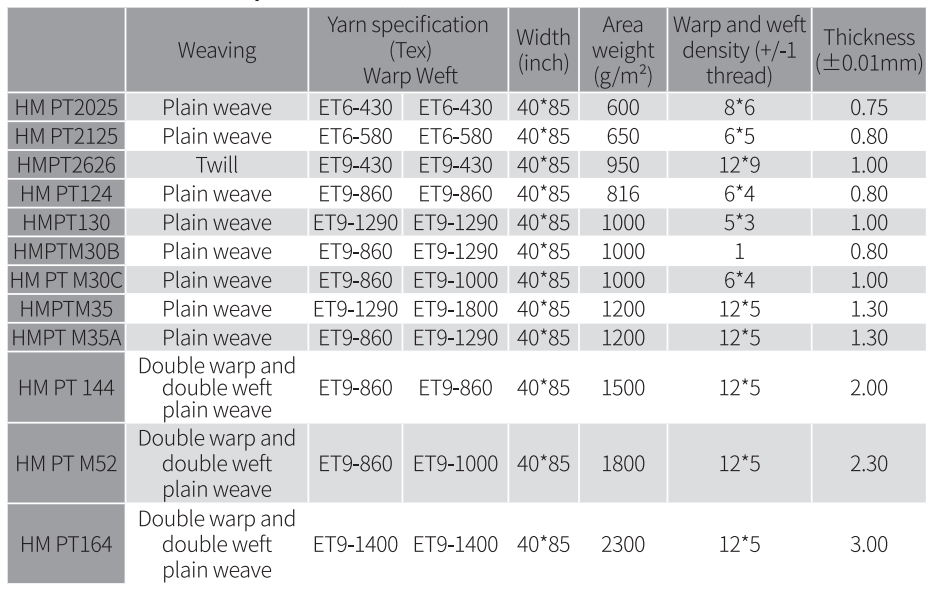

Model and Specification

Model	Weave	Yarn (Tex)	Width (inch)	Weight (g/m²)	Density (threads/cm)	Thickness (mm)
HM PT2025	Plain	ET6-430×ET6-430	40×85	600	8×6	0.75
HM PT2125	Plain	ET6-580×ET6-580	40×85	650	6×5	0.80
HM PT2626	Twill	ET9-430×ET9-430	40×85	950	12×9	1.00
HM PT124	Plain	ET9-860×ET9-860	40×85	816	6×4	0.80
HM PT130	Plain	ET9-1290×ET9-1290	40×85	1000	5×3	1.00
HM PTM30B	Plain	ET9-860×ET9-1290	40×85	1000	Special	0.80
HM PTM35	Plain	ET9-1290×ET9-1800	40×85	1200	12×5	1.30
HM PT144	Double Plain	ET9-860×ET9-860	40×85	1500	12×5	2.00
HM PT164	Double Plain	ET9-1400×ET9-1400	40×85	2300	12×5	3.00

Application

Thermal Insulation:
- High-temp pipe wrapping (steam/oil/gas)
- Boiler and furnace insulation
Filtration Systems:
- Baghouse filter media
- Cement plant dust collection
Fire Protection:
- Fireproof curtains and blankets
- Electrical equipment insulation
Marine Engineering:
- Engine room insulation
- Exhaust system protection

Remarks

Standard Packaging:
- Rolled with PE film inner wrap
- Wooden crate for international shipping
Customization:
- Available with silicone/PTFE coatings
- Custom widths up to 120 inches
Storage:
- 24-month shelf life in dry conditions
- Avoid direct sunlight exposure

Standard Complied

Material Standards:
- ISO 2078 (Glass fiber designations)
- ASTM D579 (Fabric construction)
Performance Standards:
- EN 13501-1 (Fire resistance Class A2)
- ISO 12138 (Abrasion resistance)
Safety Standards:
- ISO 22262-1 (Asbestos-free verification)
- EU Regulation 1272/2008 (CLP)

This is a product showcase page. For pricing and purchasing, please contact our sales team.
