SECTION 1: FIRE RESPONSE MODULE

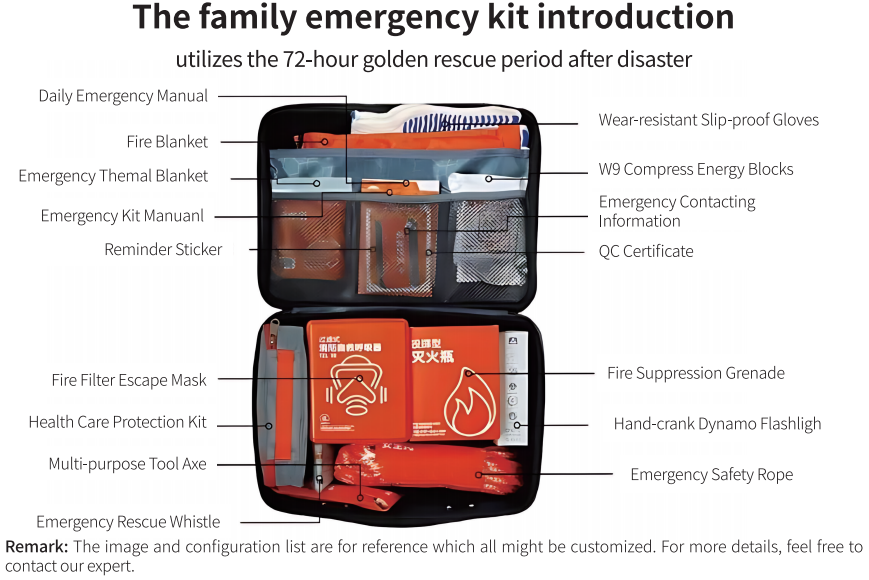

Fire safety components: fire blanket, extinguisher, fire filter escape mask
1.1 Fire blanket
Material structure: edge enhanced by Hexagonal Weave Pattern (Unit Size: 3mm)
Tear resistance: 40% higher than plain weave (ASTM D2261: 220N VS. 155N)
Heat resistance: 800'Cfor 5min (EN 1869:2019 Class E compliant)
Flexibility: Retains 95% tensile strength after 5000 folds
Deployment: Smothers Class A/B/F fires in 8-12 seconds
1.2 Ultra-fine dry powder extinguisher
Agent: ABC multipurpose (90% particle size {<}20um), other agent is available when customized Discharge:8-12 seconds @lm’coverage
Certification: EN 3-7:2004+ Kitemark
ECTION2:ESCAPE&SURVIVAL MODULE
Escape tools: rope, flashlight, whistle
2.1 Heat-resistant escape rope
Core structure:
Hexagonal braided aramid yarn sleeve (Burst strength: 3,220kg
Internal steel wire (3mm diameter,3l6L stainless steel)
Performance:
Melting point: 500° C(5min load-bearing)
Length: 15m (Static load limit: 150kg)
2.2 Hand-crank dynamo flashlight
Modes: Strobe (120lm), SOS (80lm), High beam (300lm)
Runtime: 72hrs (lP68 waterproof, 3m submersion)
Additional Tools: Glass breaker (1,200N impact force)
SECTION 3: MEDICAL EMERGENCY MODULE
Medical kit: thermal blanket, first aid, compressed energy bar
3.1 Hypothermia prevention system
Thermal blanket:
Dual-layer aluminium foil PET (90% reflectivity, ASTM F1980)
Dimensions:2100x1600mm(Folds to 85x85mm)
M9 Compressed Energy Blocks:
2,400kcal/100g(5-yearshelf life, ls0 22000)
3.2 Trauma first aid kit
Components:
Hemostatic gauze (impregnated)
Burn gel dressing (4x4 inch hydrogel)
Tourniquet ( customized as per NATO Stock standard)
Hexagonal weave technology advantage

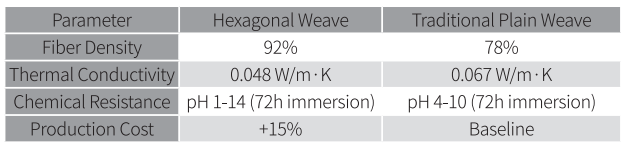

Structural comparison
Parameter | Hexagonal Weave | Traditional Plain Weave |
Fiber Density | 92% | 78% |
Thermal Conductivity | 0.048 W/m·K | 0.067 W/m·K |
Chemical Resistance | pH 1-14 (72h immersion) | pH 4-10 (72h immersion) |
Production Cost | +15% | Baseline |
Primary: Vacuum-sealed PE (Oxygen transmission <10cm³/m²/day)
Secondary: 5-layer corrugated box (Edge crush test≥55kN/m)
Markings: Inventory list + multilingual instructions
This is a product showcase page. For pricing and purchasing, please contact our sales team.
